2018 Cadillac Xts Front Rear Bumper Mould

Warranty: 1 Year
Shaping Mode: Plastic Molding Die
Surface Finish Process: Polishing
Mould Cavity: Single Cavity
Plastic Material: PP
Process Combination Type: Single-Process Mode
Detailed Information Details Description Mold Video

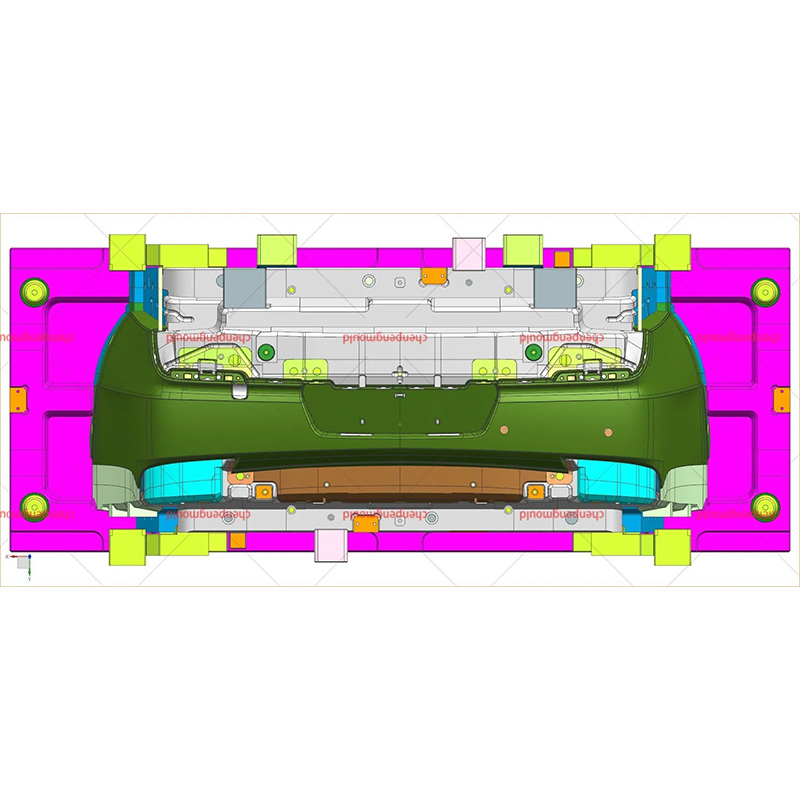

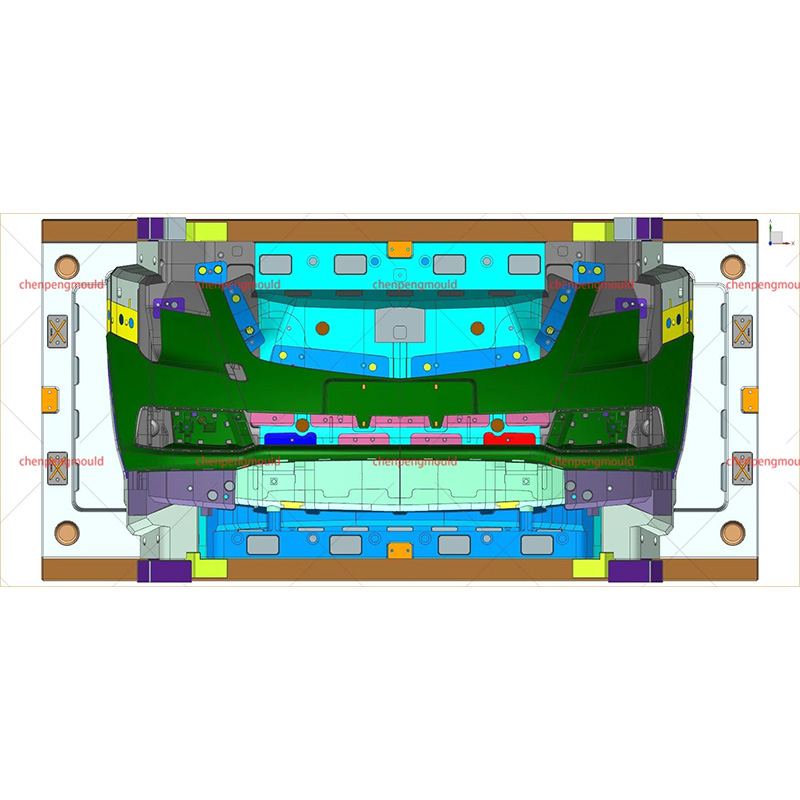

Mould Name Cadillac front rear bumper mould
Material PP
Bumper Size 1900*610*560mm
Steel For Cavity &. Core P20
Mould Base C45
NOs. of Cavity 1*1
Injection System Yudo 5 direct injection gates
Ejection System Ejector pins, angle lifters
Mould Standard OEM/HASCO
Mould Estimated Size 2100 x 850 x9000mm
Mould Weight 11500KG
Injection Machine Size 1850T
Mould Lifetime 5years
Mould manufacturer Time 50--90days
Chenpeng 23-year quality guarantee

Automotive Mold Production Experts Around You

Taizhou Huangyan Chenpeng Mold Co., Ltd. is a professional wholesale 2018 Cadillac Xts Front Rear Bumper Mould supplier and quality 2018 Cadillac Xts Front Rear Bumper Mould factory in China. The company′s main business is the manufacturing and development of automotive exterior and interior mold and modified bumper mold, with strong forward product design and development capabilities. The company has strong experience in the design and development of automotive injection molds since 2000. The founder Mr. Yimin Jin of the company is well-known in the industry and has invented and created various structural designs of bumper molds, Structural design professional industry.
