Wholesale 2019 Audi Q7 Front/Rear Bumper Mould Suppliers

Automotive upgrade and OEM parts mold supplie.

Home / Mold Series / Bumper Mould / 2019 Audi Q7 Front/Rear Bumper Mould
  • 2019 Audi Q7 Front/Rear Bumper Mould
  • 2019 Audi Q7 Front/Rear Bumper Mould
  • 2019 Audi Q7 Front/Rear Bumper Mould
  • 2019 Audi Q7 Front/Rear Bumper Mould
  • 2019 Audi Q7 Front/Rear Bumper Mould
  • 2019 Audi Q7 Front/Rear Bumper Mould
  • 2019 Audi Q7 Front/Rear Bumper Mould
  • 2019 Audi Q7 Front/Rear Bumper Mould

2019 Audi Q7 Front/Rear Bumper Mould

Warranty: 1 Year
Shaping Mode: Injection Mould
Surface Finish Process: Polishing
Mould Cavity: Single Cavity
Plastic Material: PP EPDM
Process Combination Type: Single-Process Mode
Detailed Information Details Description Mold Video

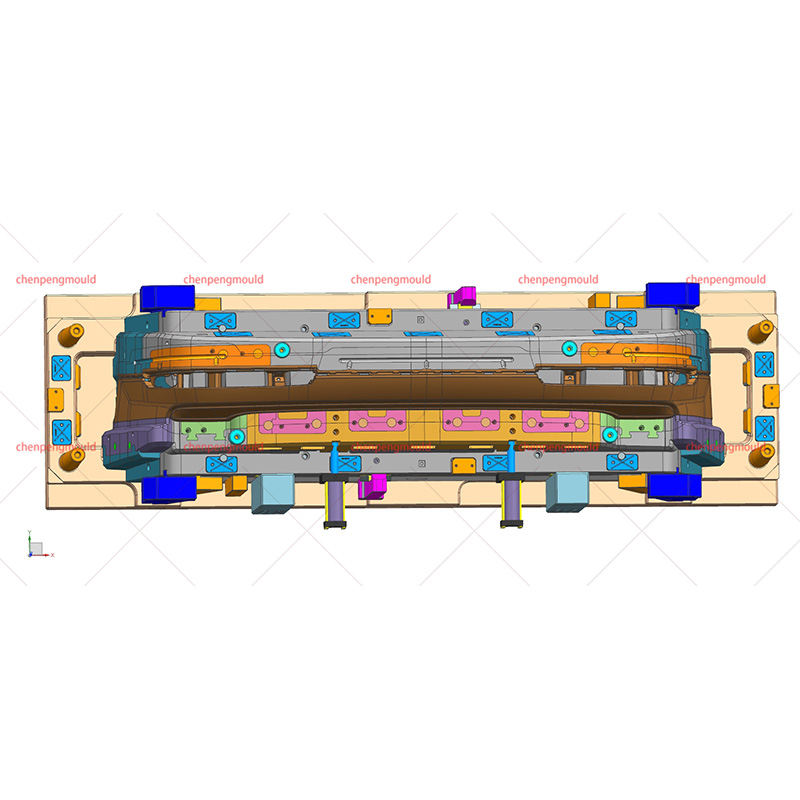

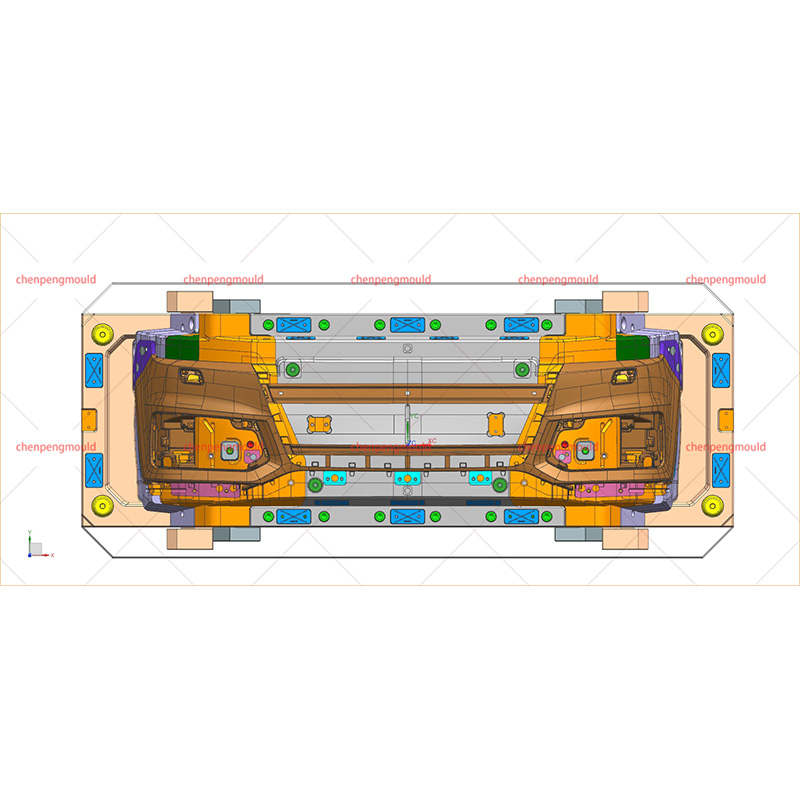

Mould Name Audi Q7 Car Bumper Mould
Material PP+EPDM(Contraction: 1, 5%)
Bumper Size 1800*510*460mm
Steel For Cavity &. Core P20
Mould Base C45
NOs. of Cavity 1*1
Injection System Yudo 5 direct injection gates
Ejection System Ejector pins, angle lifters
Mould Standard HASCO
Mould Estimated Size 2250 x 900 x 1050mm
Mould Weight 13500KG
Injection Machine Size 1850T
Mould Lifetime 5years
Mould manufacturer Time 50--90days
Chenpeng 23-year quality guarantee

Automotive Mold Production Experts Around You

Taizhou Huangyan Chenpeng Mold Co., Ltd. is a professional wholesale 2019 Audi Q7 Front/Rear Bumper Mould supplier and quality 2019 Audi Q7 Front/Rear Bumper Mould factory in China. The company′s main business is the manufacturing and development of automotive exterior and interior mold and modified bumper mold, with strong forward product design and development capabilities. The company has strong experience in the design and development of automotive injection molds since 2000. The founder Mr. Yimin Jin of the company is well-known in the industry and has invented and created various structural designs of bumper molds, Structural design professional industry.
